PLATEBATTENS
C-Tech PlateBattens are simply the most robust carbon batten available on the market.
Strongest
Prepreg fibre, autoclave consolidation and continuous outside layers = the strongest batten available.
Lighter
30% lighter than glass battens of a similar stiffness.
Expert Support
From dinghies to superyachts - Use our experience to get the right spec first time.
C-Tech is constantly pushed by the world’s top sailors to stay ahead and deliver the best products possible. The perfect balance of materials laminated with tapered layers on centreline ensure maximum strength and greatly reducing the chance of delamination or splintering. There are two standard types of battens available.
PlateBatten Range
Leech battens

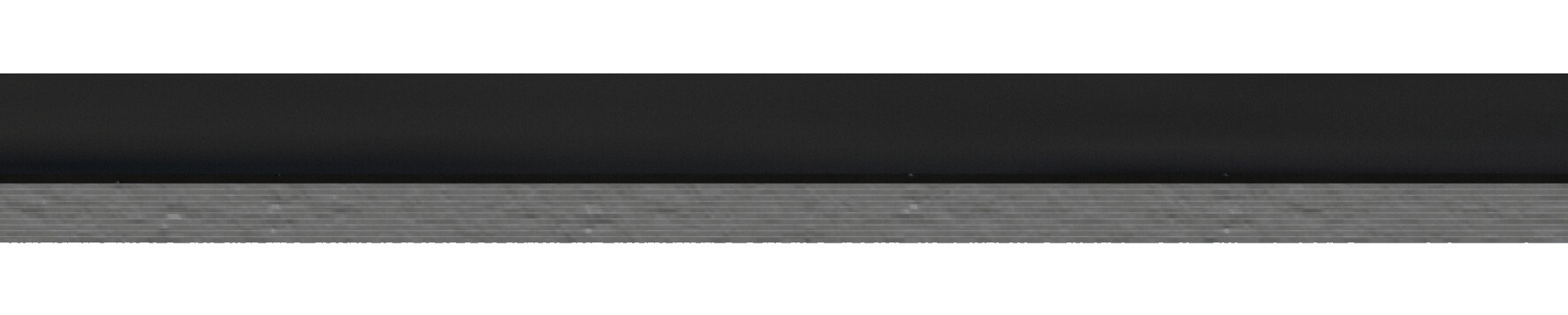

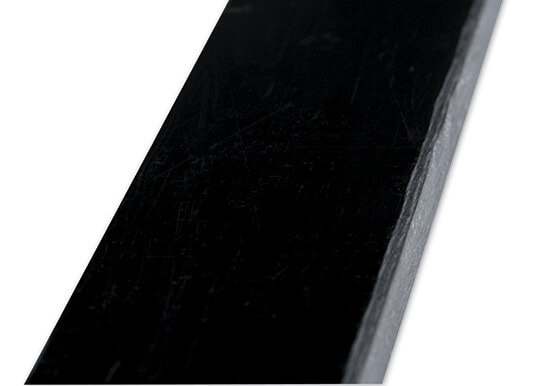

Leech battens have unidirectional S-glass outside layers. Maximum draft postion 35%. Made from a blend of carbon fibre and s-glass, a higher percentage of s-glass near the tip provides flexible, durable battens. Available in stock lengths 1,000mm to 3,500mm.
Full-length battens

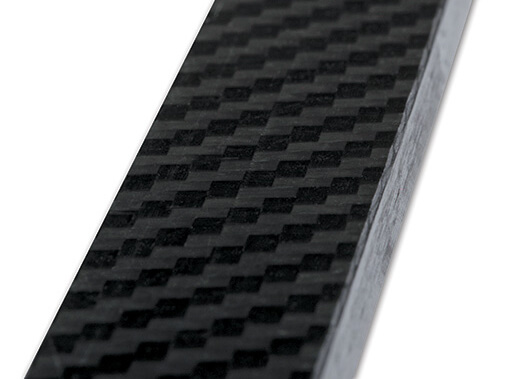

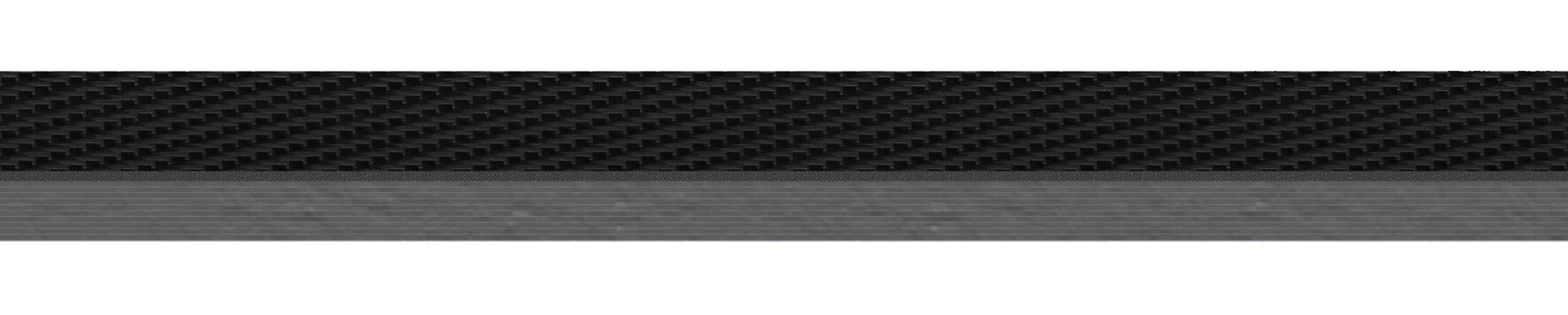

Full-length battens have carbon cloth outer layers. Draft position 40-45%. Made from 100% pre-preg carbon fibre cured at 120°c. Available in stock lengths 1,000 to 4,500mm long.
How To Select The Right PlateBattens
There are three methods you can specify C-Tech platebattens
1. Convert
Convert from existing battens to C-Tech PlateBattens using conversion charts.
If you are currently using a batten with a known EI value, you can specify a C-Tech PlateBatten with the closest EI using the conversion charts below.
2. Request New
Request C-Tech PlateBattens for a new sail based on C-Tech standard sets.
Our sales team can specify a set of C-Tech PlateBattens for a given yacht type using our experience and database of previously supplied boats.
3. Bend Test
Bend test existing battens to calculate EI value.
Measure the stiffness (EI) of your existing battens using the method detailed here. We strongly recommend to only bend test the back half of the batten to ensure the taper does not influence the results. Use a weight that will deflect the batten to approximately 10% camber. Once the EI values have been established you will have a reference point to specify C-Tech PlateBattens from the tables.
PlateBatten Data Full-length
10mm Full Length
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP10320/1000 CTP10320/1500 CTP10320/2000 CTP10320/2500 CTP10320/3000 | 10 10 10 10 10 | 3.2 3.2 3.2 3.2 3.2 | 1000 1500 2000 2500 3000 | 2.7 2.7 2.7 2.7 2.7 | 45 68 90 113 135 |
| CTP10380/1000 CTP10380/1500 CTP10380/2000 CTP10380/2500 CTP10380/3000 | 10 10 10 10 10 | 3.8 3.8 3.8 3.8 3.8 | 1000 1500 2000 2500 3000 | 4.6 4.6 4.6 4.6 4.6 | 54 80 107 134 161 |
| CTP10440/1000 CTP10440/1500 CTP10440/2000 CTP10440/2500 CTP10440/3000 CTP10440/3500 | 10 10 10 10 10 10 | 4.4 4.4 4.4 4.4 4.4 4.4 | 1000 1500 2000 2500 3000 3500 | 7.4 7.4 7.4 7.4 7.4 7.4 | 62 93 124 155 186 217 |
15mm Full Length
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP15320/1000 CTP15320/1500 CTP15320/2000 CTP15320/2500 CTP15320/3000 | 15 15 15 15 15 | 3.2 3.2 3.2 3.2 3.2 | 1000 1500 2000 2500 3000 | 4.0 4.0 4.0 4.0 4.0 | 68 101 135 169 203 |
| CTP15380/1000 CTP15380/1500 CTP15380/2000 CTP15380/2500 CTP15380/3000 | 15 15 15 15 15 | 3.8 3.8 3.8 3.8 3.8 | 1000 1500 2000 2500 3000 | 7.0 7.0 7.0 7.0 7.0 | 80 121 161 201 241 |
| CTP15440/1000 CTP15440/1500 CTP15440/2000 CTP15440/2500 CTP15440/3000 CTP15440/3500 | 15 15 15 15 15 15 | 4.4 4.4 4.4 4.4 4.4 4.4 | 1000 1500 2000 2500 3000 3500 | 11.1 11.1 11.1 11.1 11.1 11.1 | 93 140 186 233 279 326 |
| CTP15560/1000 CTP15560/1500 CTP15560/2000 CTP15560/2500 CTP15560/3000 CTP15560/3500 | 15 15 15 15 15 15 | 5.6 5.6 5.6 5.6 5.6 5.6 | 1000 1500 2000 2500 3000 3500 | 24.0 24.0 24.0 24.0 24.0 24.0 | 120 180 241 301 361 421 |
| CTP15680/2500 CTP15680/3000 CTP15680/3500 CTP15680/4000 | 15 15 15 15 | 6.8 6.8 6.8 6.8 | 2500 3000 3500 4000 | 44.1 44.1 44.1 44.1 | 367 440 513 587 |
19mm Full Length
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP19380/1000 CTP19380/1500 CTP19380/2000 CTP19380/2500 CTP19380/3000 CTP19380/3500 | 19 19 19 19 19 19 | 3.8 3.8 3.8 3.8 3.8 3.8 | 1000 1500 2000 2500 3000 3500 | 8.8 8.8 8.8 8.8 8.8 8.8 | 102 152 203 254 305 356 |
| CTP19440/1000 CTP19440/1500 CTP19440/2000 CTP19440/2500 CTP19440/3000 CTP19440/3500 | 19 19 19 19 19 19 | 4.4 4.4 4.4 4.4 4.4 4.4 | 1000 1500 2000 2500 3000 3500 | 14.1 14.1 14.1 14.1 14.1 14.1 | 118 177 236 295 353 412 |
| CTP19560/1000 CTP19560/1500 CTP19560/2000 CTP19560/2500 CTP19560/3000 CTP19560/3500 CTP19560/4000 | 19 19 19 19 19 19 19 | 5.6 5.6 5.6 5.6 5.6 5.6 5.6 | 1000 1500 2000 2500 3000 3500 4000 | 30.4 30.4 30.4 30.4 30.4 30.4 30.4 | 152 229 305 381 457 533 609 |
| CTP19680/2500 CTP19680/3000 CTP19680/3500 CTP19680/4000 | 19 19 19 19 | 6.8 6.8 6.8 6.8 | 2500 3000 3500 4000 | 55.9 55.9 55.9 55.9 | 464 557 650 743 |
| CTP19800/2500 CTP19800/3000 CTP19800/3500 CTP19800/4000 | 19 19 19 19 | 8.0 8.0 8.0 8.0 | 2500 3000 3500 4000 | 92.8 92.8 92.8 92.8 | 544 652 761 870 |
25mm Full Length
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP25380/1500 CTP25380/2000 CTP25380/2500 CTP25380/3000 CTP25380/3500 | 25 25 25 25 25 | 3.8 3.8 3.8 3.8 3.8 | 1500 2000 2500 3000 3500 | 11.6 11.6 11.6 11.6 11.6 | 202 270 337 405 472 |
| CTP25440/1500 CTP25440/2000 CTP25440/2500 CTP25440/3000 CTP25440/3500 | 25 25 25 25 25 | 4.4 4.4 4.4 4.4 4.4 | 1500 2000 2500 3000 3500 | 18.6 18.6 18.6 18.6 18.6 | 235 313 391 470 548 |
| CTP25560/1500 CTP25560/2000 CTP25560/2500 CTP25560/3000 CTP25560/3500 CTP25560/4000 | 25 25 25 25 25 25 | 5.6 5.6 5.6 5.6 5.6 5.6 | 1500 2000 2500 3000 3500 4000 | 40.0 40.0 40.0 40.0 40.0 40.0 | 301 401 501 601 702 802 |
| CTP25680/2500 CTP25680/3000 CTP25680/3500 CTP25680/4000 | 25 25 25 25 | 6.8 6.8 6.8 6.8 | 2500 3000 3500 4000 | 73.5 73.5 73.5 73.5 | 611 733 855 978 |
| CTP25800/2500 CTP25800/3000 CTP25800/3500 CTP25800/4000 | 25 25 25 25 | 8.0 8.0 8.0 8.0 | 2500 3000 3500 4000 | 122.1 122.1 122.1 122.1 | 715 858 1001 1144 702 |
| CTP259202500 CTP25920/3000 CTP25920/3500 CTP25920/4000 | 25 25 25 25 | 9.2 9.2 9.2 9.2 | 2500 3000 3500 4000 | 188.4 188.4 188.4 188.4 | 823 988 1152 1317 |
PlateBatten Data Leech
10mm Leech
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP10390/1000L CTP10390/1500L CTP10390/2000L CTP10390/2500L CTP10390/3000L | 10 10 10 10 10 | 3.9 3.9 3.9 3.9 3.9 | 1000 1500 2000 2500 3000 | 3.2 3.2 3.2 3.2 3.2 | 55 79 105 131 158 |
| CTP10510/1000L CTP10510/1500L CTP10510/2000L CTP10510/2500L CTP10510/3000L | 10 10 10 10 10 | 5.1 5.1 5.1 5.1 5.1 | 1000 1500 2000 2500 3000 | 6.5 6.5 6.5 6.5 6.5 | 69 104 138 173 208 |
| CTP10660/1000L CTP10660/2000L | 10 10 | 6.6 6.6 | 1000 2000 | 13.8 13.8 | 90 179 |
15mm Leech
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP15390/1000L CTP15390/1500L CTP15390/2000L CTP15390/2500L CTP15390/3000L | 15 15 15 15 15 | 3.9 3.9 3.9 3.9 3.9 | 1000 1500 2000 2500 3000 | 5.1 5.1 5.1 5.1 5.1 | 71 106 141 177 212 |
| CTP15510/1000L CTP15510/1500L CTP15510/2000L CTP15510/2500L CTP15510/3000L | 15 15 15 15 15 | 5.1 5.1 5.1 5.1 5.1 | 1000 1500 2000 2500 3000 | 10.6 10.6 10.6 10.6 10.6 | 95 142 190 238 285 |
| CTP15660/1000L CTP15660/1500L CTP15660/2000L CTP15660/2500L CTP15660/3000L CTP15660/3500L | 15 15 15 15 15 15 | 6.6 6.6 6.6 6.6 6.6 6.6 | 1000 1500 2000 2500 3000 3500 | 22.5 22.5 22.5 22.5 22.5 | 124 186 249 311 373 435 |
| CTP15780/1000L CTP15780/1500L CTP15780/2000L CTP15780/2500L CTP15780/3000L CTP15780/3500L | 15 15 15 15 15 15 | 7.8 7.8 7.8 7.8 7.8 7.8 | 1000 1500 2000 2500 3000 3500 | 41.0 41.0 41.0 41.0 41.0 41.0 | 144 216 288 360 432 504 |
| CTP15870/1000L CTP15870/1500L CTP15870/2000L CTP15870/2500L CTP15870/3000L CTP15870/3500L | 15 15 15 15 15 15 | 8.7 8.7 8.7 8.7 8.7 8.7 | 1000 1500 2000 2500 3000 3500 | 49.5 49.5 49.5 49.5 49.5 | 177 266 355 443 532 621 |
| CTP15960/1500L CTP15960/2000L CTP15960/2500L CTP15960/3000L CTP15960/3500L | 15 15 15 15 15 15 | 9.6 9.6 9.6 9.6 9.6 | 1500 2000 2500 3000 3500 | 75.9 75.9 75.9 75.9 75.9 | 265 354 443 531 620 |
19mm Leech
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP19510/1000L CTP19510/1500L CTP19510/2000L CTP19510/2500L CTP19510/3000L | 19 19 19 19 19 | 5.1 5.1 5.1 5.1 5.1 | 1000 1500 2000 2500 3000 | 13.4 13.4 13.4 13.4 13.4 | 120 180 241 301 362 |
| CTP19660/1000L CTP19660/1500L CTP19660/2000L CTP19660/2500L CTP19660/3000L CTP19660/3500L | 19 19 19 19 19 19 | 6.6 6.6 6.6 6.6 6.6 6.6 | 1000 1500 2000 2500 3000 3500 | 28.5 28.5 28.5 28.5 28.5 28.5 | 157 236 315 394 473 551 |
| CTP19780L/1000 CTP19780/1500L CTP19780/2000L CTP19780/2500L CTP19780/3000L CTP19780/3500L | 19 19 19 19 19 19 | 7.8 7.8 7.8 7.8 7.8 7.8 | 1000 1500 2000 2500 3000 3500 | 52.0 52.0 52.0 52.0 52.0 52.0 | 182 273 364 456 547 638 |
| CTP19870/1000L CTP19870/1500L CTP19870/2000L CTP19870/2500L CTP19870/3000L CTP19870/3500L | 19 19 19 19 19 19 | 8.7 8.7 8.7 8.7 8.7 8.7 | 1000 1500 2000 2500 3000 3500 | 62.8 62.8 62.8 62.8 62.8 62.8 | 225 337 449 562 674 786 |
| CTP19960/1500L CTP19960/2000L CTP19960/2500L CTP19960/3000L CTP19960/3500L | 19 19 19 19 19 19 | 9.6 9.6 9.6 9.6 9.6 9.6 | 1500 2000 2500 3000 3500 | 96.1 96.1 96.1 96.1 96.1 | 336 449 561 673 786 |
25mm Leech
| Batten Code | Width (Mm) | Thickness (Mm) | Length (Mm) | Ei (Nm2) | Weight (Grams) |
|---|---|---|---|---|---|
| CTP25510/1500L CTP25510/2000L CTP25510/2500L CTP25510/3000L | 25 25 25 25 | 5.1 5.1 5.1 5.1 | 1500 2000 2500 3000 | 17.6 17.6 17.6 17.6 | 238 317 397 476 |
| CTP25660/1500L CTP25660/2000L CTP25660/2500L CTP25660/3000L CTP25660/3500L | 25 25 25 25 25 | 6.6 6.6 6.6 6.6 6.6 | 1500 2000 2500 3000 3500 | 37.5 37.5 37.5 37.5 37.5 | 311 414 518 622 726 |
| CTP25780/1500L CTP25780/2000L CTP25780/2500L CTP25780/3000L CTP25780/3500L | 25 25 25 25 25 | 7.8 7.8 7.8 7.8 7.8 | 1500 2000 2500 3000 3500 | 68.4 68.4 68.4 68.4 68.4 | 360 480 600 720 840 |
| CTP25870/1500L CTP25870/2000L CTP25870/2500L CTP25870/3000L CTP25870/3500L | 25 25 25 25 25 | 8.7 8.7 8.7 8.7 8.7 | 1500 2000 2500 3000 3500 | 82.6 82.6 82.6 82.6 82.6 | 443 591 739 887 1034 |
| CTP25960/1500L CTP25960/2000L CTP25960/2500L CTP25960/3000L CTP25960/3500L | 25 25 25 25 25 | 9.6 9.6 9.6 9.6 9.6 | 1500 2000 2500 3000 3500 | 126.4 126.4 126.4 126.4 126.4 | 443 591 738 886 1034 |
